Product description & features

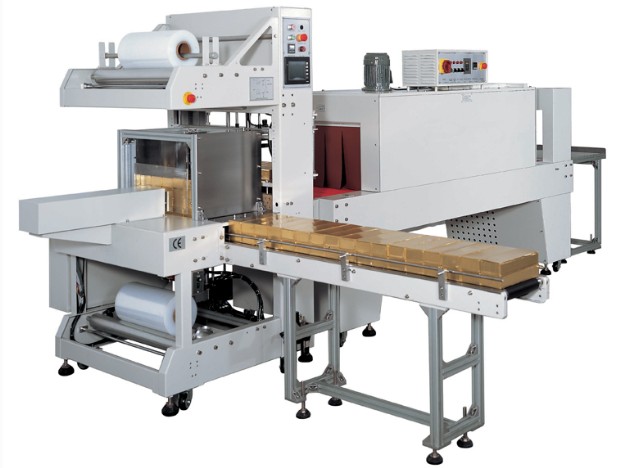

GPK-6030AE is suitable for shrinking wrapping without tray in which to pack such various boxes collected as single row/double rows/four rows and in multi-layer. It integrates the double function in tidying and heaping automatically to increase the efficiency. The product looks neat, compact and uniform.

Basic configuration

• GPK-6030AE can be supplied to the wrapper in a straight feed or side feed to meet different requirements.
• According to different requirements in production, it can automatically package in heap layers of /4layers/3layers/2layer or in multi-rows, no need for additional mould. Controlled by PLC Program Logical controller to carry out integrative of mechanism/electricity/pneumatically.
• Special design in sealing blade; the seal is firm, no crack and will not stick to the blade.
• Photo electrical system to pitch location exactly.
• The heat tunnel has 2 double blowing motors to keep air dissipated evenly in the tunnel, so to achieve better effect after shrinking.
• Cycle structure which the flowing of air can be adjustable for more power saving.
• Choose between solid steel roller covered silicone gel pipe or chain conveying.
• The system controlling the conveying speed is step-less by frequency inverter.

Scope of Application

It is applicable to for automatically stacking and the shrink wrapping it. Especially handy for stacking cigarette cartons in different shape and in multi-layer.
