X Ray Inspection System

Description

X Ray Inspection System

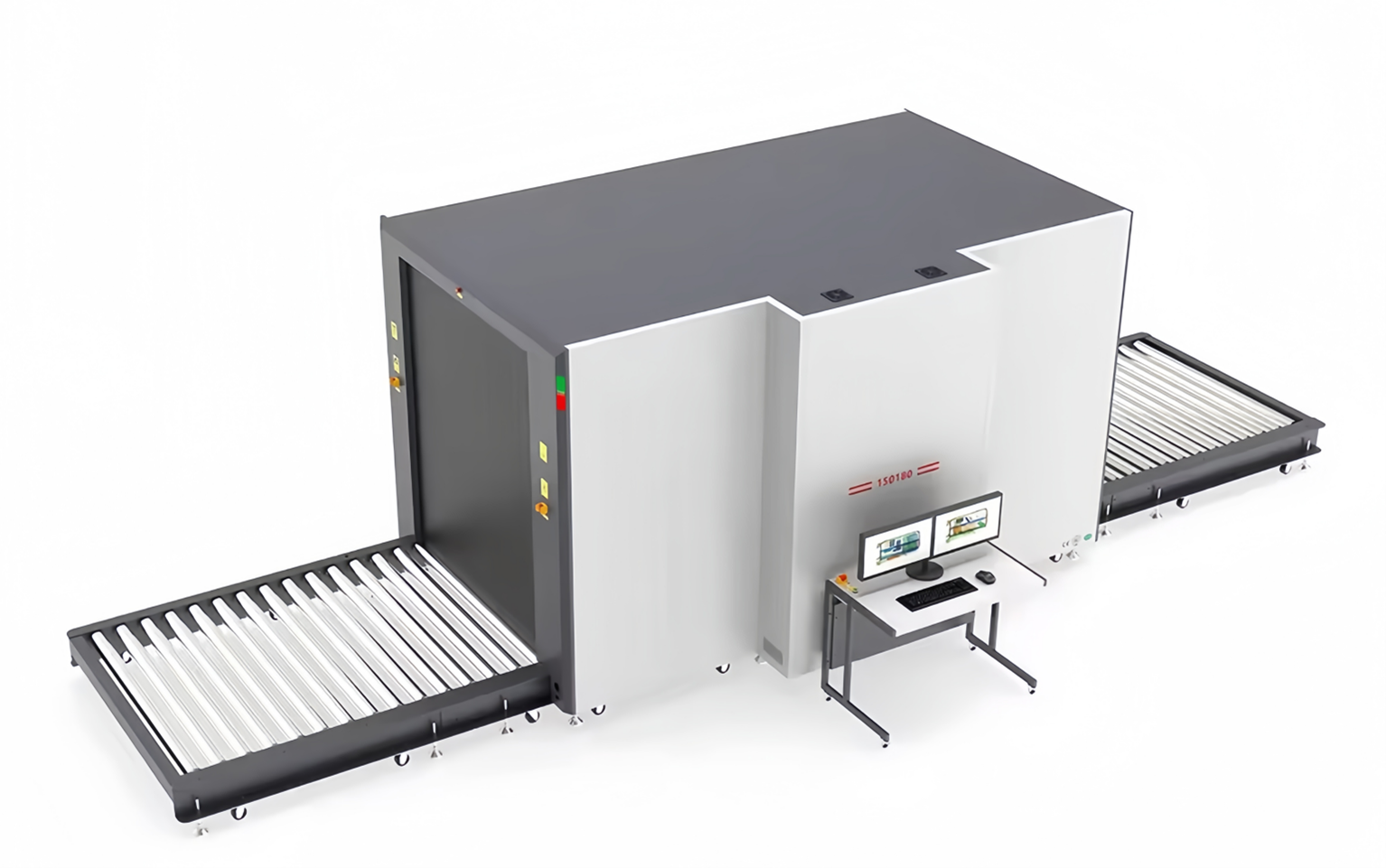

INP180180 is multi-energy x ray security inspection system for cargo scanning. It powerful to deal with big size baggage at 180cm width, and 180cm height. It provides high resolution and ultra-clear images for easy object identification with the latest technology of computer control and image processing.

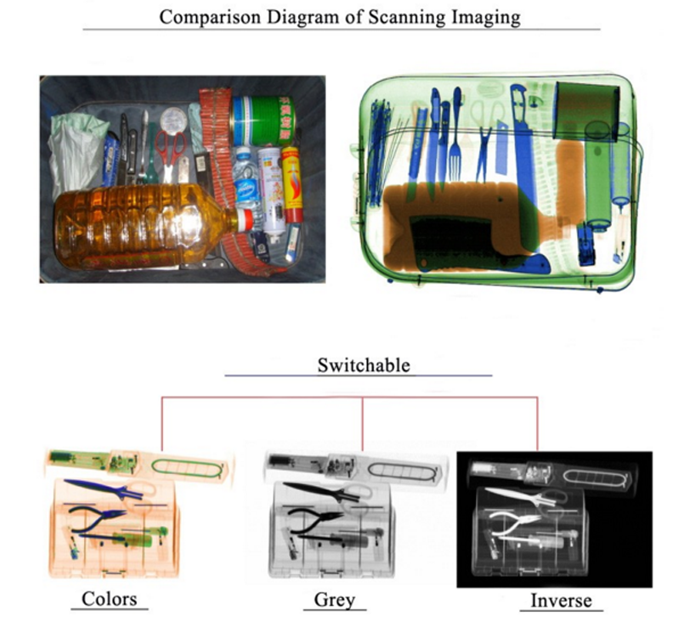

INP180180 can distinguish organic and inorganic materials by atomic composition of the material. INP180180 can distinguish explosives/drugs and realize Threat Image Project Function through adding different option. The operator can easily identify materials with the following coloring scheme:

Organic material–orange
Inorganic material–blue
Mixed material–green
High density material—red

General Specification:

Image System:

Technical Principle: Dual-energy X-ray Imaging;
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor: High Resolution Color, LCD Accord, 19inch
Image Display: High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement: 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall: All preceding images recallable, retrieval.
Help detect Explosives & Narcotics: Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection: Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive: Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions: Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications: Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc.
Images process: 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536

Operating Environment:
Operation temperature/Humidity: 0℃ to +40℃/10%-95%(non-condensing)
Storage Temperature/Humidity: -20℃to 60℃/ 5%-95%(non-condensing)
Operation Power: 220VAC(+10%～-15%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption: 2.0KW (max)
Noise: <58db
Dimensions (L×W×H) :2127mm*2230mm *2338mm

Computer Character:
CASE: IPC7132
Power: 250W/ATX
Main board: AIMB 501G2
CPU: G1610 2.6G
RAM: 2GB 1600MHz DDR3
Hard Disk: SEAGATE 500G 3.5”

X-ray Generator:
Anode Voltage: 180kv adjustment
Anode power: 1.2mA adjustment
Generate angle: 80 degree downward
Generate direct: from top to bottom
Cooling / Duty Cycle: Oil Cooling /100%
