Description

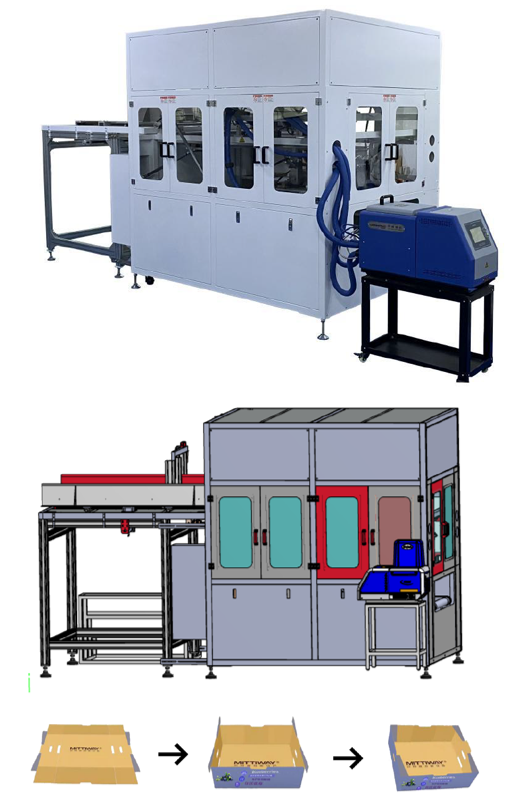

Tray Erector/Packer




Horizontal in line tray erector/packer.

Speed, 25 trays per minute.

COMMERCIAL OFFER :- HORIZONTAL IN LINE TRAY ERECTOR/PACKER.

Sr.

No.

Description Qty Unit

Price

Total

Price

1 Box forming machine

Model: INP ZH25F

Voltage:220V 50HZ 1phase

Speed:25 boxes/min

Working table height:600mm

Air supply:0.6 0.8Mpa

Machine size: L3600*W1700*H2250mm

Machine weight:800kg

With hot melt glue machine (Nordson)

1 set

Services
14 Delivery – ex works Pretoria

——

15 Project management, installation & commissioning

(Excluding transport & accommodation)

  TOTAL

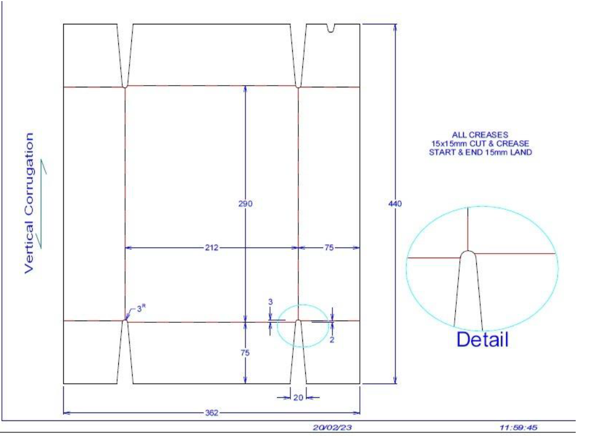

Tray layout

The process of the automatic box forming machine:

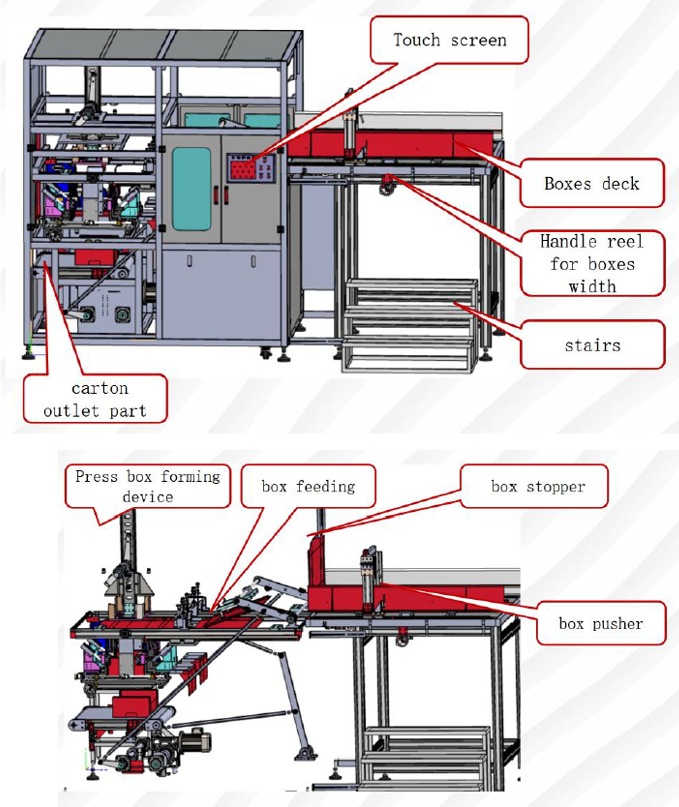

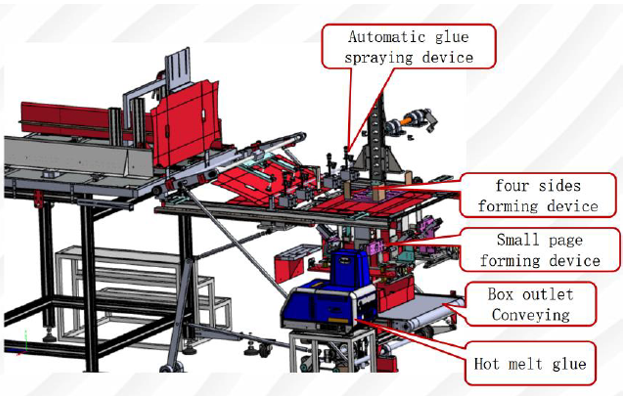

It consists of three parts: adjustable boxes deck, take/feed part, and adjustable folding box spraying glue. The automatic box forming machine uses a motor to feed the box, and the side suction cups absorb the colour boxes. The box is put into the feeding station through the suction cup, and sent to the forming station for glue spraying and folding, and finally press down the front and rear two small folds against the side of the box. All the devices of the box forming machine are reset, and the finished box is conveyed to the conveyor, and the above actions are automatically cycled.
