SPICE GRINDER CAP – CAPPING MACHINE

Description

SPICE GRINDER CAP CAPPING MACHINE

SCOPE OF OFFER: –

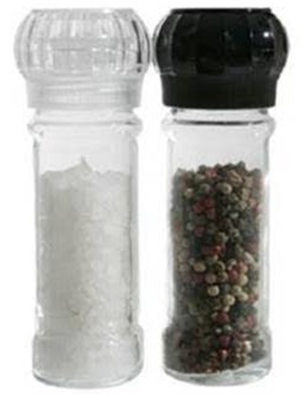

Spice grinder cap, capping machine 65-75 per minute

 COMMERCIAL OFFER

Commercial Terms

Delivery: Approximately 12 weeks
Payment: TT, 50% as deposit on machine order
Terms: Delivery included in Gauteng
Service: Installation and commissioning included
Warranty: 12 months
Validity: 30 days.

Project Introduction:

High-Speed Six-Head Rotary Capping Machine Automatic Cap Elevator

Product Description for Customer Plan :

Production capacity: 60-70 bottle per min

Bottle type: Round Bottle

Bottle filling volume:

Cap Style:

Sealing type: Screw on

Equipment Planning

According to your company technical requirements such as materials, filling methods, packaging materials, and production processes. Hereby to design this set of automatic filling production.

Due to the packaging form of the company products, it is determined to plan the production line according to the shape of the bottle, the cap and the production process.

（1）The layout of the whole line is reasonable, and there are external equipment sockets in suitable locations.
（2）Each system has its own man-machine interface, and relevant parameters can be operated on the man-machine interface.
（3）There are safety protection or warning or emergency stop in all dynamic running places.
（4）The input end of the total air source (with two-piece or three-piece) is equipped with a quick discharge device.
（5）The safety protection device should be interlocked with the operation of the equipment to ensure that the equipment cannot operate until the safety protection device does not work.
（6）All moving parts that are likely to cause injury are warned, or other protective measures are taken to avoid operator contact.
（7）The electrical system and mechanical system have overload protection devices. The design and installation of the electrical system complies with the relevant regulations of the country on electrical safety.
（8）The foreseeable safety system and other system failures are displayed on the touch screen or have alarm devices.
（9）If the equipment has the following conditions, it is equipped with an emergency stop device.

Description of the Equipment

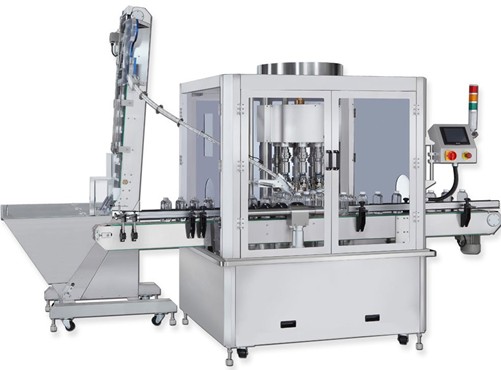

Fully Automatic High-Speed Six-Head Rotary Capping Machine

Overview:

The fully automatic rotary high-speed capping machine designed with a rotary disc bottle feeding mechanism, the machine has a disc (bottle indexing star wheel) to position the bottles for continuous movement. It utilizes an automatic cap arranging machine, a cap conveyor track, and a cap placing head to automatically arrange, convey, and place caps on the bottles, followed by automatic cap tightening and sealing. Adjustable production speed through frequency conversion.

Features:

1. The machine fully automates the entire process, including bottle feeding, cap arranging, cap placing, cap tightening, and product conveying, ensuring seamless automation from start to finish.
2. Equipped with a globally recognized PLC programmable controller, it allows speed adjustment via frequency conversion and includes an automatic counting feature for enhanced operational flexibility.
3. Utilizing a rotary disc bottle feeding mechanism (tailored to specific bottle types), the machine ensures smooth and continuous bottle handling without clamping or breakage, delivering orderly, stable, and safe operation.
4. The system includes an automatic cap arranging unit and a linear conveyor for precise and efficient cap placement.
5. Designed for versatility, the machine can function independently or be integrated into a complete automated production line for filling and sealing.
6. The intuitive touch screen control interface from a trusted brand offers clear data display and user-friendly operation, improving overall efficiency.
7. Constructed from SUS304 stainless steel, the machine features a robust and sleek design for durability and longevity.

Capping Machine Structure:

The capping machine’s base is mounted on the frame’s base plate, with base components securely fixed to the frame platform. The structure consists of several key elements, including the frame, base components, transmission device, transition gear mechanism, star wheel assemblies, anti-rotation bracket, capping head assembly, upper capping unit, protective doors, guide plates, bottle support system, main motor, and the lower capping retrieval device.

Working Principle:

As filled cups are transferred into the cup star wheel, the lids are dispensed from the lid dispenser and guided through the lower lid groove to the outlet. The lower capping retrieval system delivers the lids to the position directly below the capping heads. The capping heads collect the lids and lower them onto the cups. As the cups align beneath the capping heads, the heads descend and tightly twist the lids in place, completing the capping process smoothly and efficiently.

Key Technical Parameters:

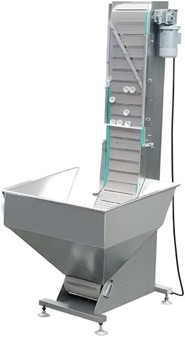

Cap Elevator

Key Features:

• Stainless steel construction
• Plastic chain plate for cap elevation
• Durable guide rail for cap transfer

This machine is ideal for large-diameter caps. The plastic chain plate efficiently lifts caps into the guide rail, ensuring seamless transitions for subsequent capping operations.

Main Technical Parameters:
