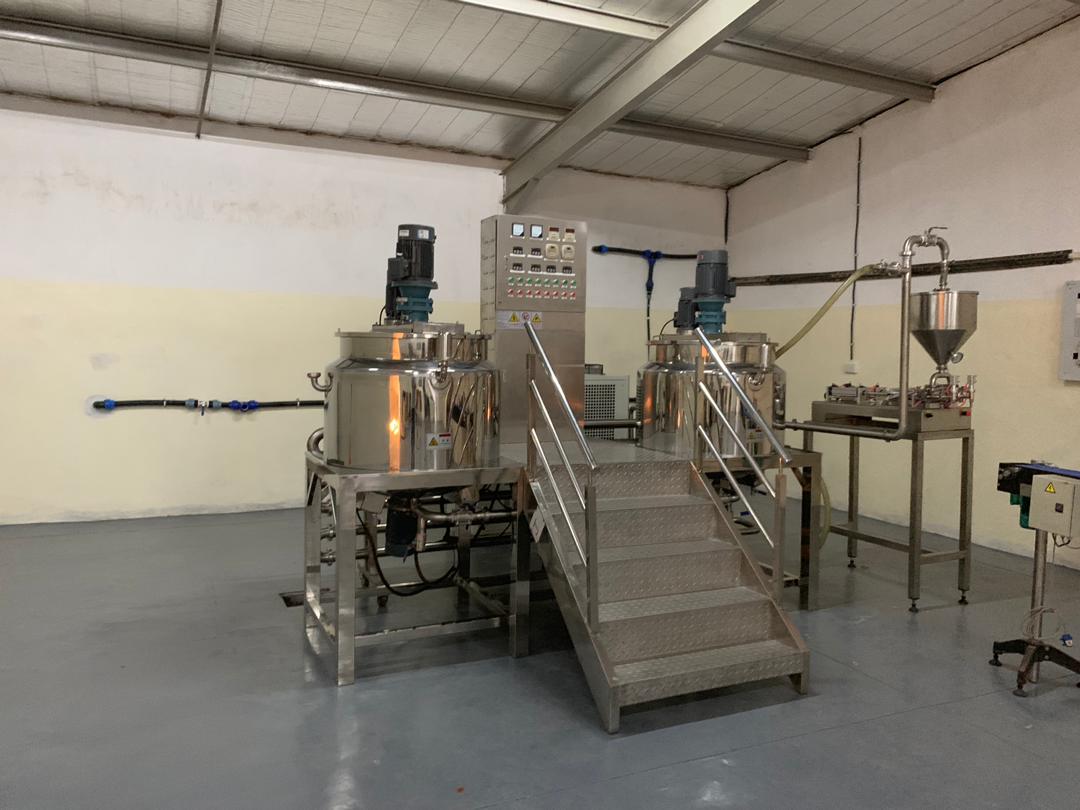

Mayonnaise Processing and Filling Line
Ref:
Mayonnaise (from milk and oil) and salad dressing mixing tank with filling, capping and labelling machines.
Plastic jars with capacity 250ml, 500ml, 750ml, 1.5l and 3l with screw caps
MACHINES WILL INCLUDE
- 1 x 500L Processing chilling mixing tank for mayonnaise
- Pump to remove the product from the tank.
- Piston filling machine to fill mayonnaise
- Hand capper – pneumatic type for various size caps
- Labelling machines, for round jars
- CIP (100L) – clean in place stainless steel heating tank
| QUOTE | ||||
| # | Machine Description | QTY | Unit Price | Total Price |
| 1 | 500L JACKETED MIXING TANK | 1 | ||
| 1.1 | V TYPE FEED TANK WITH PNEUMATIC VALVE | 1 | ||
| 1.2 | CHILLING UNIT – 7KW (24000BTU) AIR-COOLED WATER CHILLER | 1 | ||

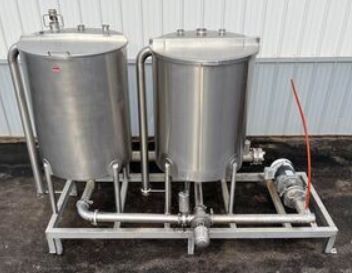

| 1.3 | 500L SS STORAGE HOLDING TANK – TRANSFER FROM MIXER FOR FILLING | 1 | ||
| 2 | PUMP TO REMOVE PRODUCT – 1000ML/H – Material: SS304Capacity: outlet: φ38 | 1 | ||
| 3 | SS WORK TABLES – 2M X 600MM | 2 | ||
| 4 | PISTON FILLING MACHINE | FLS1000 – 100ML-1000ML FILLING STROKE | 1 | ||
| 4.1 | PISTON FILLING MACHINE – PRODUCT AND CIP CONNECTIONS | 1 | ||
| 5 | HAND CAPPING MACHINE | CP110 – WITH ONE CAPPING HEAD | 1 | ||
| 5.1 | 2 X EXTRA CAPPING CHUCKS FOR DIFFERENT SIZE CAPS | 2 | ||
| 6 | LABELLING MACHINE LB104 | MANUAL TYPE FOR ROUND BOTTLES | 1 | ||
| 7 | HEATING GUN AND BAR SEALER FOR SHRINK WRAPPING | 2 | ||
| 8 | 300L AIR COMPRESSOR – 5.5 KW / 7.5 HP Belt Drive V-Type
CLEAN AIR DELIVERY RATE-23.66 CFM (670 Litres/min) INPUT POWER 380 V (Three Phase) MAXIMUM PRESSUR 116 PSI, 8 Bar |
1 | ||
| 9 | 2 HEAD BOTTLE RINSER – WITH FILTRATION, RECIRCULATION SYSTEM,
50ML PLASTIC TANK AND OZONE SYSTEM |
1 | ||
| 10 | 100L Pneumatic mixing tank with emulsifier agitator impeller | 1 | ||
| Equipment Total | ||||
| Services | ||||
| 11 | Project Management – installation and training (excluding flights & accommodation) | |||
| SUBTOTAL SERVICES | ||||
| Total-Equipment & Services (ex vat) | ||||

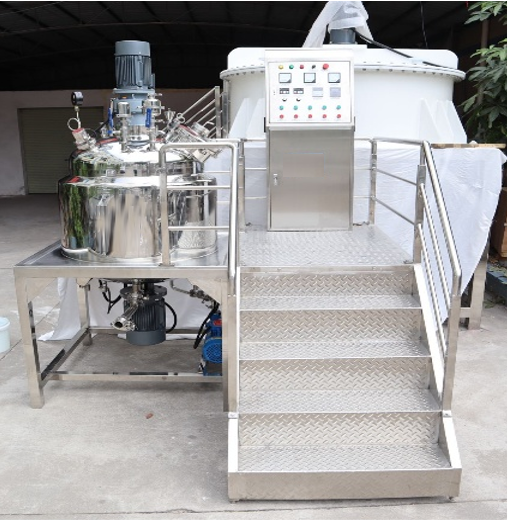

500L MIXING TANK
500L vacuum homogenizer mixer tank (fixed,electric heating)
- Design Capacity:600L (working 150-500L)
- Heating method :electric heating, oil
- Motor : Beide, 2sets
- Voltage: 380V, 3-phase
- Top blending speed: 0-63r/min
- Agitator power: 4kw
- Homogenizer speed: 0-3000rpm
- Homogenizer power:11kw
- Electric heating power : mian pot 27kw+2*9kw(oil and water tank)
- Electronic box parts:DELTA ,DELIX
- motor of oil and water tank:200L/300L 0.75kw
- Vacuum pump:2.37kw
Configuration details
| NO. | Item | Description | Remark |
| 一 | Emulsifying pot | Working volume 500 L,full volume600L .quantity: 1set | |
| 1 | Inner pot | Material:SUS316L,thickness：6mm,Bottom elliptical head.The top cover butterfly head is directly connected with the barrel.The max.vacuum pressure of inner pot reaches -0.09MPa at room temperature（visible seal head vacuum gauge）,without opening the valve, the vacuum can remain unchanged for 12 hours. | The inner surface adopts mirror polishing, the level reaches 300U |
| 2 | Jacket | Material:SUS304,thickness：4mm,The design pressure of jacket: 0.22MPa,working pressure when using steam heating ≤0.2MPa（visible pot pressure gauge),steam heating and chilled water cooling can be achieved. | The side of the pot is
equipped with DN15 vacuum port and manual ball valve |
| 3 | insulating layer | Adopt aluminum silicate fiber cotton ，thickness：50mm | |
| 4 | Shell | Material :SUS304，thickness：3 mm， | The inner surface adopts mirror polishing, the level reaches 300U |
| 5 | Support | Hanging bracket，material:SUS304 | Stainless steel mirror polished square tube,the level reaches 300U |

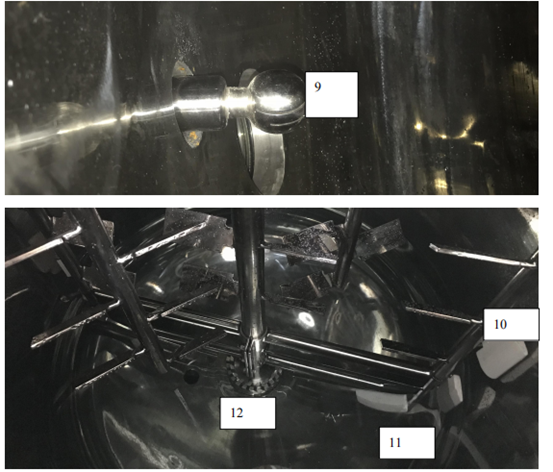

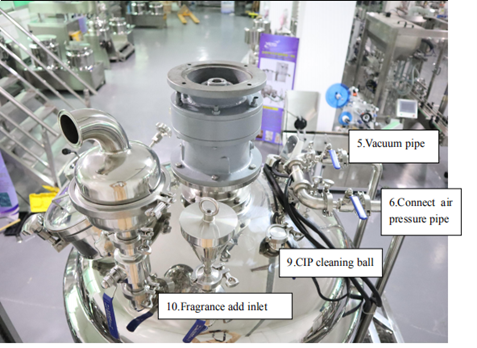

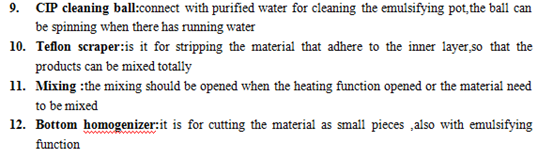

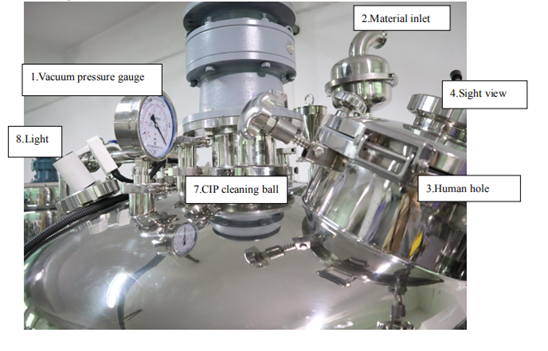

| 6 | Pot cover | Material:SUS316L ,Butterfly head, thickness: mm,included configuration ：DN450 quick installation interface manhole 1 pcs；1 lighting port with 24V mirror lamp；DN50 Material inlet 1 pcs, built-in filter and external manual valve；Vacuum pressure port 1pcs，three-way interface 1pcs，one end connected to vacuum pipe, equipped with manual ball valve, one end connected to compressed air pipe, equipped with manual ball valve; vacuum outlet , equipped with manual ball valve and air filter.DN25 CIP spray system 2sets,equipped with sanitary grade universal spray ball; vacuum pressure gauge 1 pcs; DN25 stainless steel: DN15 spice inlet 1 pcs, with sanitary manual ball valve and spice cup.
|
The inside and outside of upper cover is polished with 300U ,all pipe are connected with sanitary clamp ,and the spray ball can be disassembled according to the demand.
Please see the attached table 1 for the specific graphic explanation. |
| 7 | Mixer | The agitator consists of a frame-type external agitator with a scraper and a central paddle. The material of agitator is sus316L, and the scraper material is PTFE.Mixer speed 40~60r/min, frequency control, clockwise rotation. The stirring power is 4KW, the gear motor adopts Shanghai Guomao brand, model: GSAF77-23.87-4KW, shaft hole Φ50mm. The sealing of the stirring shaft adopts German Bergman mechanical seal. The fastening bolt of the agitator is made of SUS316L.
|
The surface of the agitator is polished 300U. It is easy to see the dead angle for easy cleaning. The force of the frame stirring blade on the material is downward, and the force of the center blade on the material is upward, so that the material is formed up and down and mixed sufficiently. |
| 8 | Homogenizer | A high shear homogenizer is set at the bottom off-center position, and the homogenizing electric power is 11KW. Homogenizer rotating speed :0~3000r/min,frequency speed。The seal of homogeneous axis adopts German bergman mechanical seal. The material of homogeneous axis，homogeneous rotor and stator are both SUS316L.The material is inhaled from the side of the homogeneous stator into the working chamber, then sheared by the rotor at high speed and ejected from the top of the stator to form an internal circulation。Homogeneous motor is from Seimens beide. | homogeneous rotor and stator should be electrolytic polished after processing and polish smooth |
| Ⅱ | Vacuum system | Water circulation vacuum pump, power :2.37KW, maximum displacement :63m³/h. The vacuum pump should be with vacuum buffer tank and food-grade reinforced hose when at normal temperature state:-0.092mpa ( gauge pressure) . | |
| Ⅲ | Electric control | Control cabinet shell material: SUS304 thin plate
Type of control: manual button Frequency converter : Delta brand Main electrical components: Schneider brand Temperature measurement components are with PID function intelligent instrument control thermal inertia, emergency stop button. |
|
| Ⅳ | Frame platform | Frame material SUS304, tread panel SUS304 pressed pattern plate: the overall platform | |
| Ⅴ | Security and protection system | Mixing and homogenizing overload working ,the machine will be automatic power off and stop working. Automatic relief and protection when equipment jacket over pressure The electronic control system has emergency stop button, which can cut off power immediately in case of emergency |
|
| Ⅵ | Others | The discharge valve at the bottom of the main pot adopts manual bottom sticking ball valve: The temperature sensor and the bottom of the pot are seamlessly connected: Main stainless steel material should meet GB24511-2009 standard: Power supply: three-phase 380V,50Hz. |

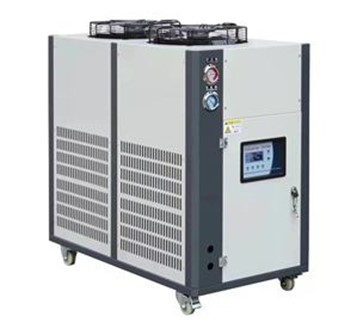

CHILLING UNIT – 3.8KW AIR-COOLED WATER CHILLER
1x INP150 Compact (Compact Unit – Maximum cool capacity 3.8kW @ 40ºC ambient))
Specifications:
✓ Air cooled condenser
✓ Ø350 Condenser fan
✓ Internal 70L Stainless steel insulated water tank
✓ Compact unit can be either wall mounted, mounted to frame or floor standing (mounting brackets/frame not included)
✓ ¾ inch Copper pipe submerged evaporator ✓ 20-micron water inlet strainer for top-up
✓ Water circulating pump mounted into unit –13.5 l/min @ 300kPa (See pump graph below)
✓ Danfoss electronic temperature controller and display
✓ HP/LP Pressure switch (auto reset).
✓ Complete electrical box with Isolator and controls
✓ Single phase 230V 50Hz
✓ Designed to be easy to install, “plug and play”
Cooling Capacity 3.4kW
Cooling Circuits 1
Number of Compressors 1
Compressor Type Rotary
Number of Fans 1
Number of Pumps 1
Plump Flow Rate 0 – 40 l/min
Pump Pressure 0,05 – 3.8 Bar
Tank Capacity 70 Liters
Inlet and Return Fitting ¾ Inch Male
Water Top Up Supply Fitting ¾ Inch Male
Machine Dimensions 1250mm x 650mm x 650mm
Machine Weight ±180kg
Power Supply Single phase 230V 50Hz
Outlet Temperature 7ºC (±150 L/hr) (Adjustable to 1ºC)
Return Temperature 17ºC
Refrigerant R417A / R22
Evaporator Copper Coil

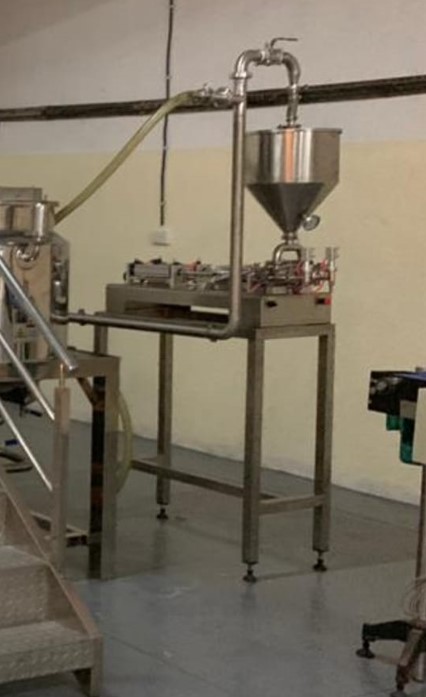

PISTON FILLING MACHINE | FLS1000 – 100ML-1000ML FILLING STROKE

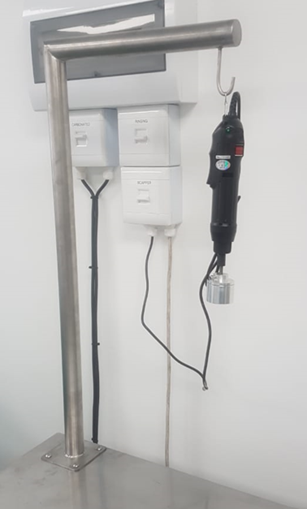

HAND CAPPING MACHINE | CP110

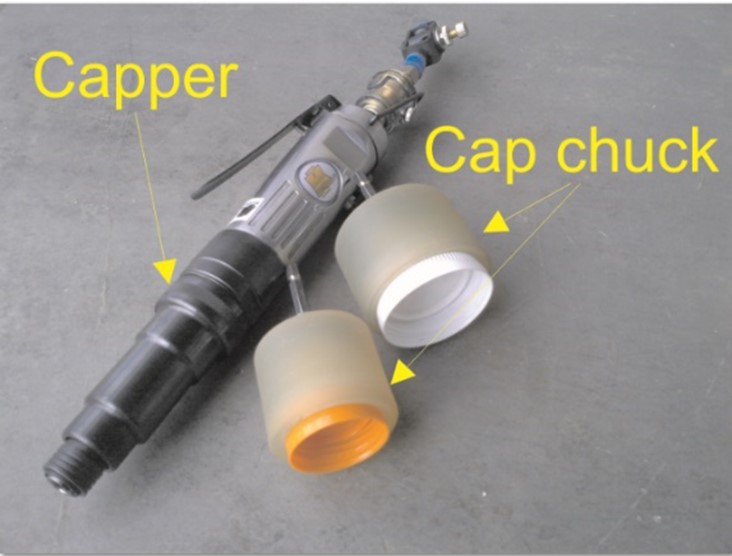

This is an easy-to-use tool for capping plastic bottles – fast. It is connected to an air compressor and is very handy and portable.
The cap is placed on the bottle and the Pneumatic Capper is pressed on the cap. It is tightened pneumatically and stops once the set torque is reached. The tightening level of the cap can be adjusted with the torque adjuster provided on the tool.
|
Its unique features are
|
Machine parts
|
|
|
|
Specifications
| Power | Air |
| Compressed air | 5 to 6 bar (constant) |
| Capping heads | 1 |
| Capacity | 1000 BPH |
| Cap chuck size (to be confirmed) | Most sizes and shapes – screw on |

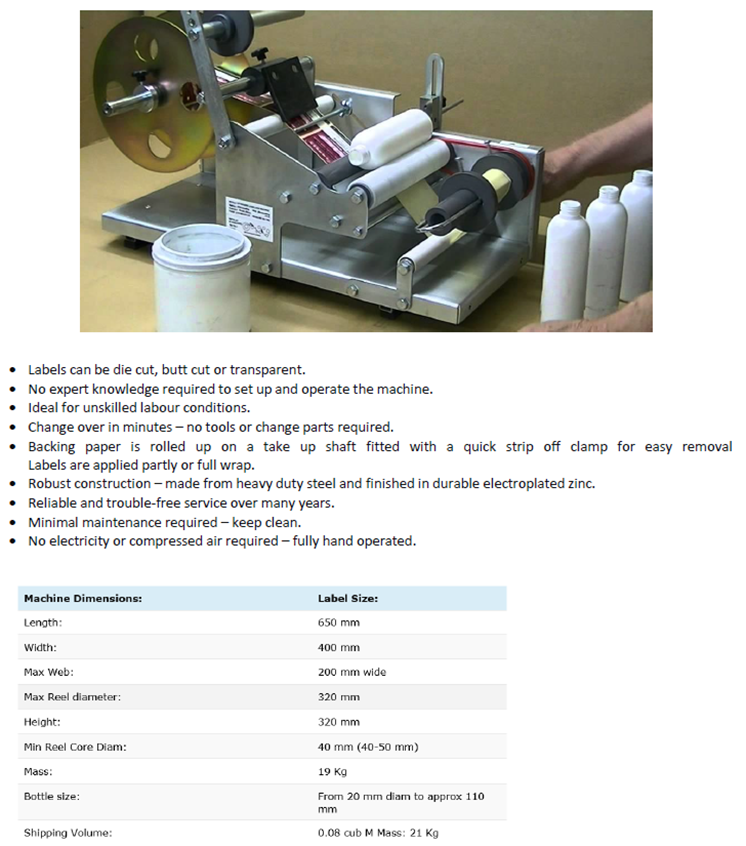

LABELLING MACHINE LB104 | MANUAL TYPE FOR ROUND BOTTLES
5 Litre |
10 Litre |
20 Litre |
 |
 |
 |
