HDPE BLOWING MACHINES FOR 5L, 10L, 20L |
SCOPE OF OFFER
HDPE BLOWING MACHINES FOR 5L, 10L, 20L
Output for 2 lines: 5L-4pcs/minute. 10L-2pcs/minute. 20L-2pcs/minute.
Price List

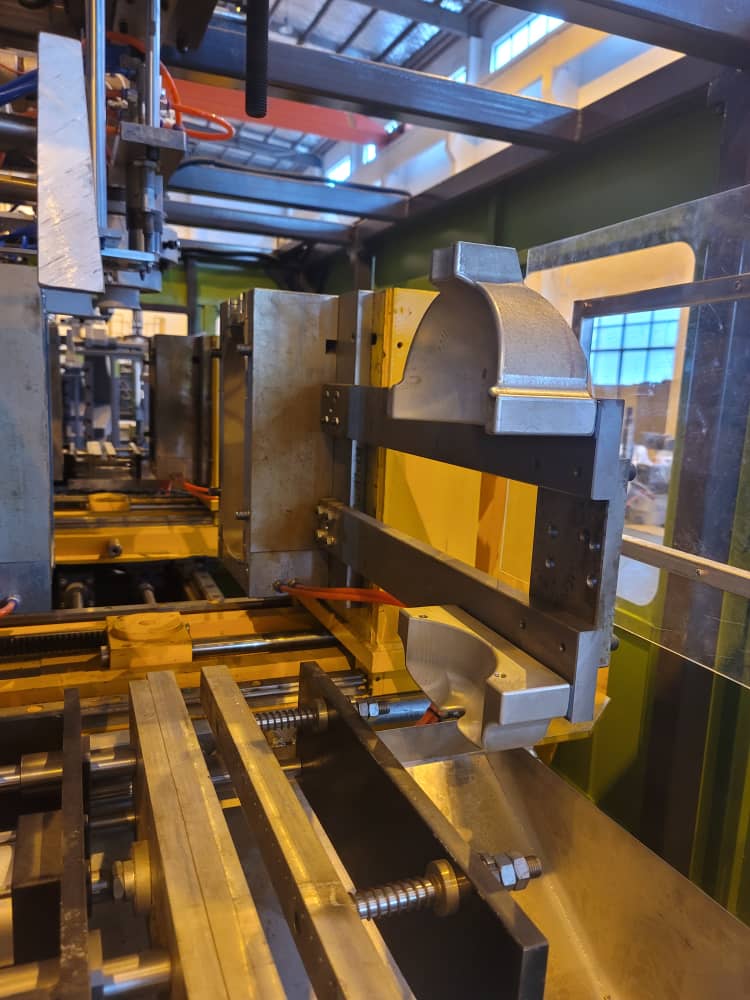

| Machine Description | Qty | Price | Total | |
| HDPE Blow moulding machine INP75BB | 2 set | |||
| Robot arm | 2 set | |||
| Down blow system | 2 set | |||
| Vacuum feeder | 2 set | |||
| 5L blowing mold | 2 set | |||
| 10L blowing mold | 2 set | |||
| 20L blowing mold | 2 set | |||
| Chiller 10HP | 1 set | |||
| 500kg mixer – hopper | 1 set | |||
| PC600 crusher | 1 set | |||
| Crushing and recycling barrel 200KG | 1 set | |||
| OPTIONAL – included in the price | ||||
| Screw air compressor 18.5KW + 1m³ gas storage tank | 1 set | |||
| Sub Total Equipment | ||||
| SERVICES | ||||
| F.A.T. (FACTORY ACCEPTANCE TEST) | ||||
| CIF DOUALA CAMEROON | ||||
| ASSEMBLY / TESTING / PERSONAL TRAINING | ||||
| Sub Total Services | ||||
| Sub Total | ||||

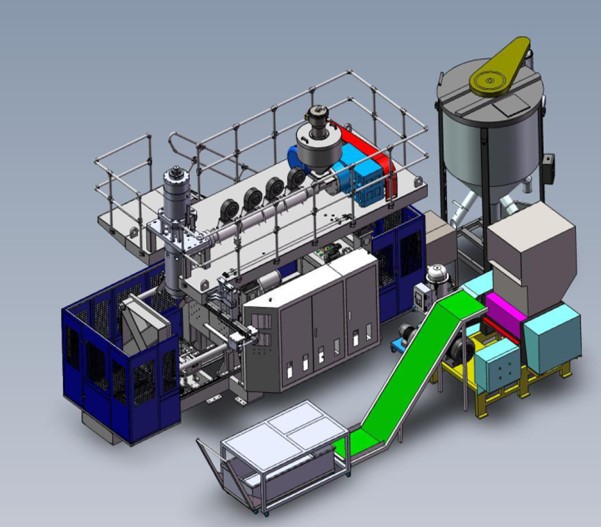

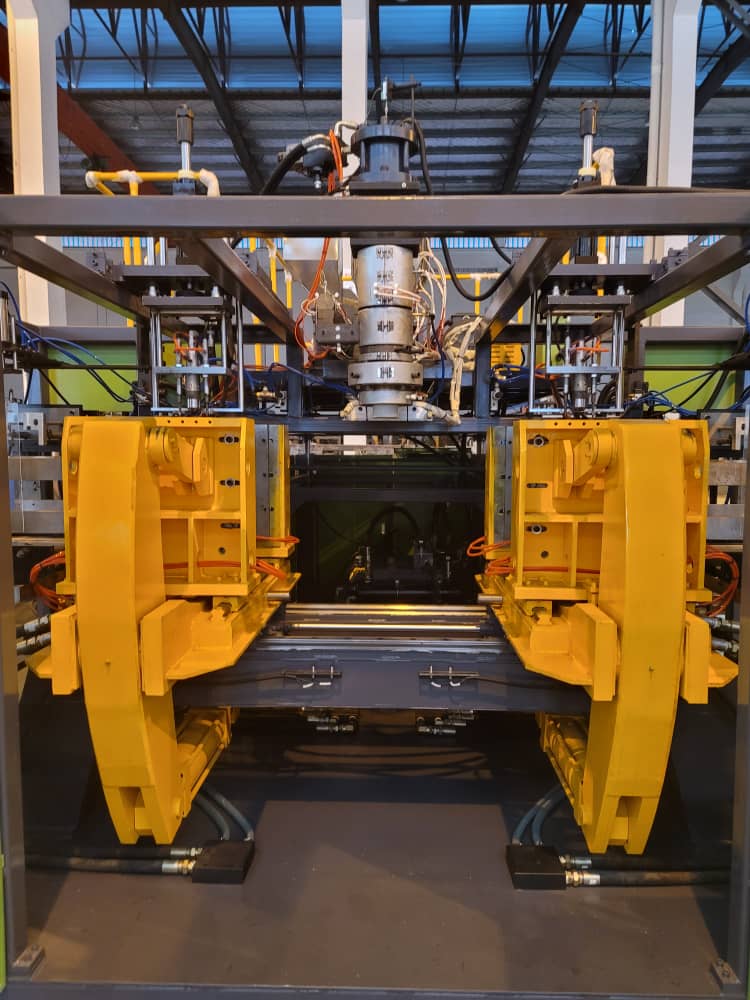

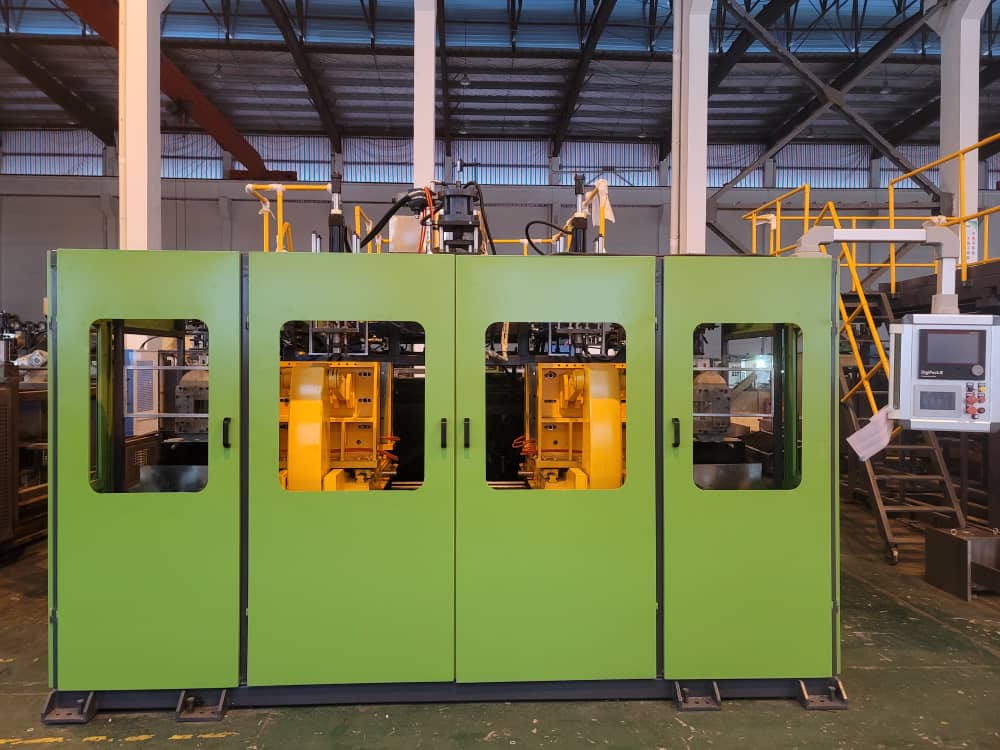

Automatic HDPE bottle blowing machine
OUTPUT FOR 1 MACHINE: 5L 2pcs/per minute | 10L 1.5 pcs/per minute | 20L 1pcs/per minute
PARAMETERS

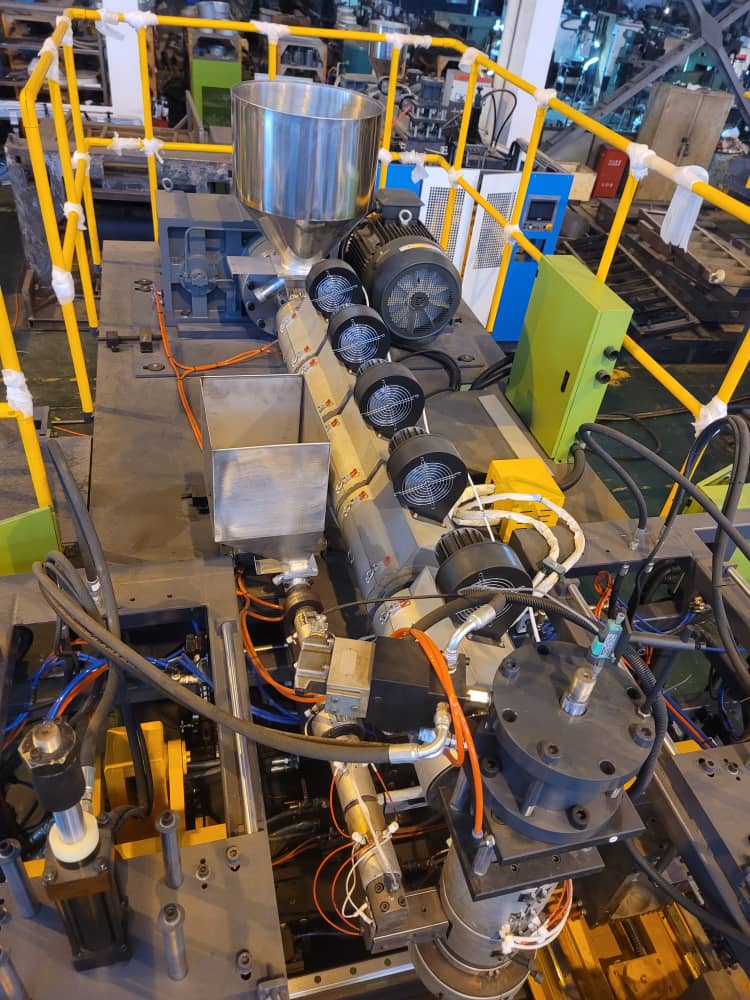

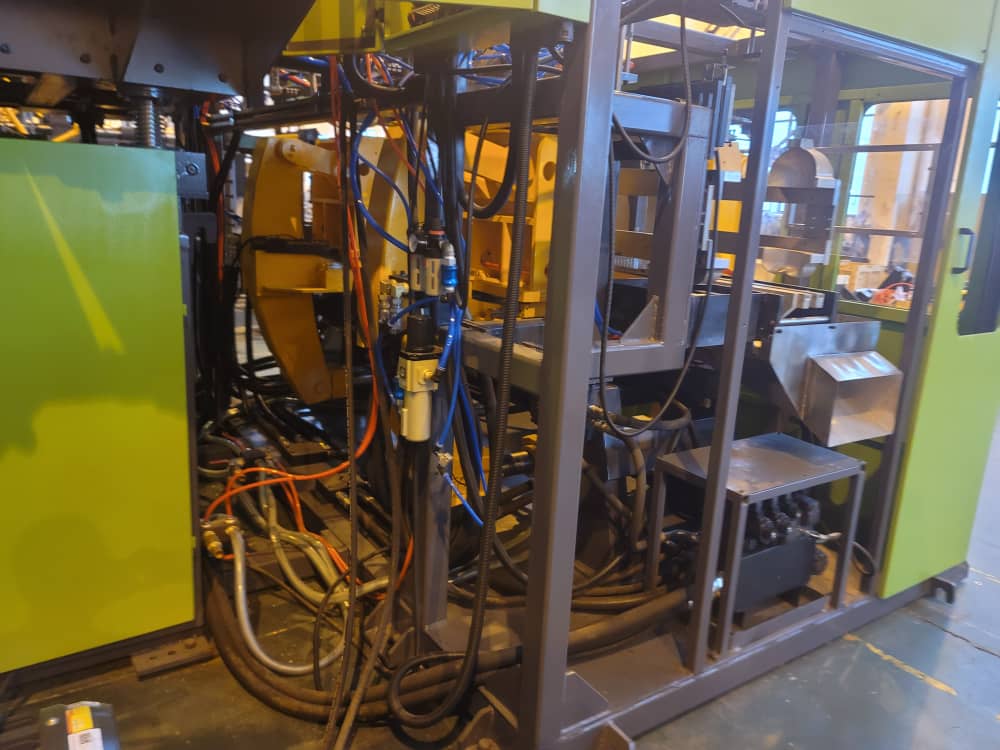

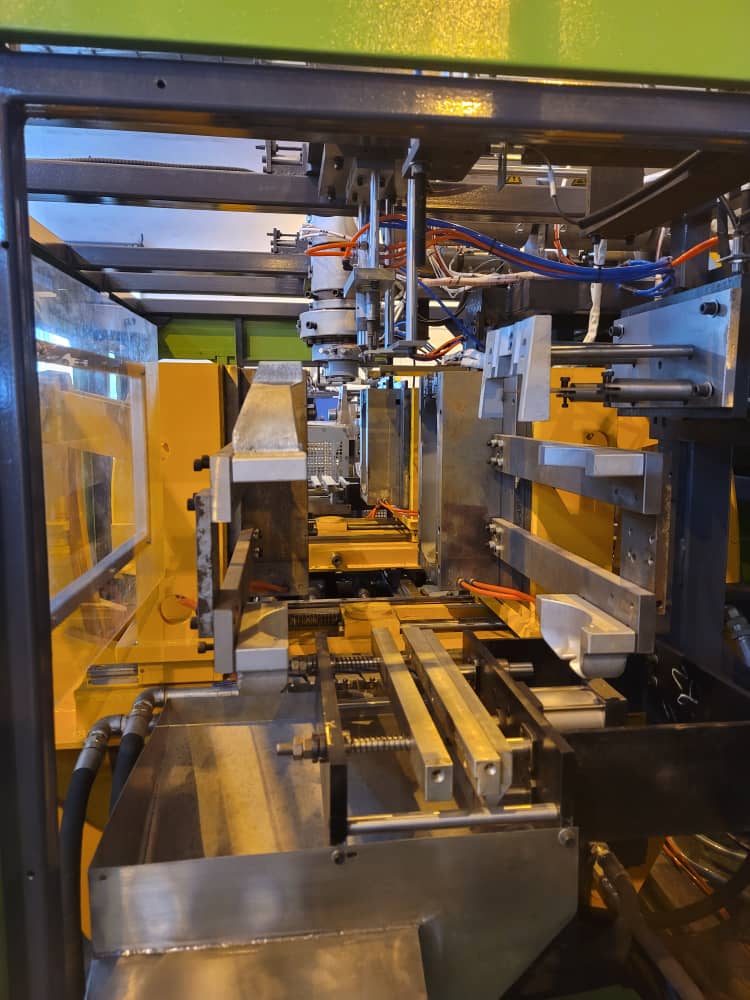

| SPECIFICATIONS | UNITS | INP75BB |
| Max container capacity | L | PRODUCT COVERAGE 10-30L |
| Number of die heads | Set | 1 |
| Machine dimension (L*W*H) | M | 4.1*2.3*3.6 |
| Total weight | Ton | 9 |
| CLAMPING UNIT | ||
| Clamping force | KN | 176 |
| Platen opening stroke | mm | 250-700 |
| Platen size | mm | 720*600 |
| Max mold size (W*H) | mm | 440*650 |
| Mold thickness | mm | 250-350 |
| POWER | ||
| Max drive | KW | 30 |
| Total power | KW | 60 |
| Fan power for screw | KW | 0.4*3 |
| Air pressure | Mpa | 0.6 |
| Air consumption | M3/min | 0.4 |
| Average energy consumption | KW | 20 |
| EXTRDER UNIT | ||
| Screw diameter | mm | 75 |
| Screw L/D ratio | L/D | 25 |
| Plasticizing capacity | Kg/hour | 90 |
| Number of heating zone | Zone | 4 |
| Extruder heating power | KW | 20 |
| Extruder driving power | KW | 30 |
| DIE HEAD | ||
| Number of heating zone | Zone | 4 |
| Power of die heating | KW | 15 |
| Max die pin diameter | mm | 250 |
| The die head volume | L | 4（3KGHDPE） |
| Hydraulic system | ||
| Drive part | Servo motor+ pump | |
| Power and displacement | 18.5KW+63L/Min | |
| Wall thickness control hydraulic for MOOG | 4KW Independent oil pump | |
| INTEGRATED CONTROL SYSTEM | 10” touch screen + Mitsubishi PLC | Japan |
| 100 POINT PARISION CONTROL | MOOG | Japan |
| TEMPERATURE CONTROL MODULE | 7018 | Taiwan |
| SERVO VALVE & SERVO TRANSDUCER | AUTOS | Italy |
| INVERTER | Inovance | China |
| HYDRAULIC OIL SEAL | DZ | Taiwan |
| INTERMEDIATE RELAY | Schneider | China |
| PNEUMATIC VALVE | Airtac | China |
| HYDRAULIC VALVE | YUKEN | Taiwan |
| HYDRAULIC MOTOR & SCREW MOTOR | Siemens | CHINA |
| Extrusion system | Special design according to the processing performance of raw materials (high efficiency screw), material: 38CrMoAlA, nitriding treatment, hardness ≥800, brittleness ≤2 grade. Suitable for new materials, broken materials, recycled materials. Inverter + AC motor + hard gear reducer drive, |
| Die head system | Accumulator die head, single cylinder, central injection, vertical FIFO design, smooth flow path of die head; The shooting piston and cylinder block slide each other moving parts, using different materials and technology, to ensure smooth and reliable movement of parts. The molten material extruded from the extrusion system flows through the inner core assembly of the die head, and is divided into two parts, each side envelope, through the die head flow channel divide and form two peach-shaped sections. |
| Clamping system | Fixed opening and closing mechanism, diagonal double pull rod single cylinder center locking, pull rod across the template oblique arm guide sleeve, pull rod plated hard role processing, High hardness, more stable clamping, more uniform clamping force, template space, strength, no deformation, mold disassembly is convenient, Linear rolling guide, central cylinder locking mold, mold closing speed. |
| Multi-function blowing system | Optional blowing needle up and down, support material, sealing and other functions; According to customer or product requirements to improve production efficiency. |
| Machine shelf | With lifting function, hydraulic motor or motor drive. Increase the size of the transmission rod to ensure the transmission force, large lifting size, adapt to mold changes. |
| Hydraulic system | Hydraulic main system adopts servo system, proportional pressure, flow control, with oil pressure feedback, mold closing response speed, more accurate output,
More stable operation, high pressure, large torque, no pressure, flow loss, the system is more energy saving, long service life and so on. Hydraulic servo system adopts position, speed double closed-loop design, equipped with MOOG 100-point wall thickness controller, servo valve, control curve tracking more precision and other characteristics. |
| Electrical control system | Electric control system adopts Japan Mitsubishi PLC for the whole machine action program control; WEINVIEW LCD display and touch screen for communication, parameter setting, modification and screen display; Each process parameter can be set and modified directly, and has a more perfect fault diagnosis function, screen operation is intuitive, convenient. |
| Safety device | Safety electric eye double protection, with large safety distance, more accurate reflection characteristics. |
