Auto Cartoning & Packing Machine

Description

CARTON ERECTOR, CARTON PACKER, CARTON SEALING MACHINE

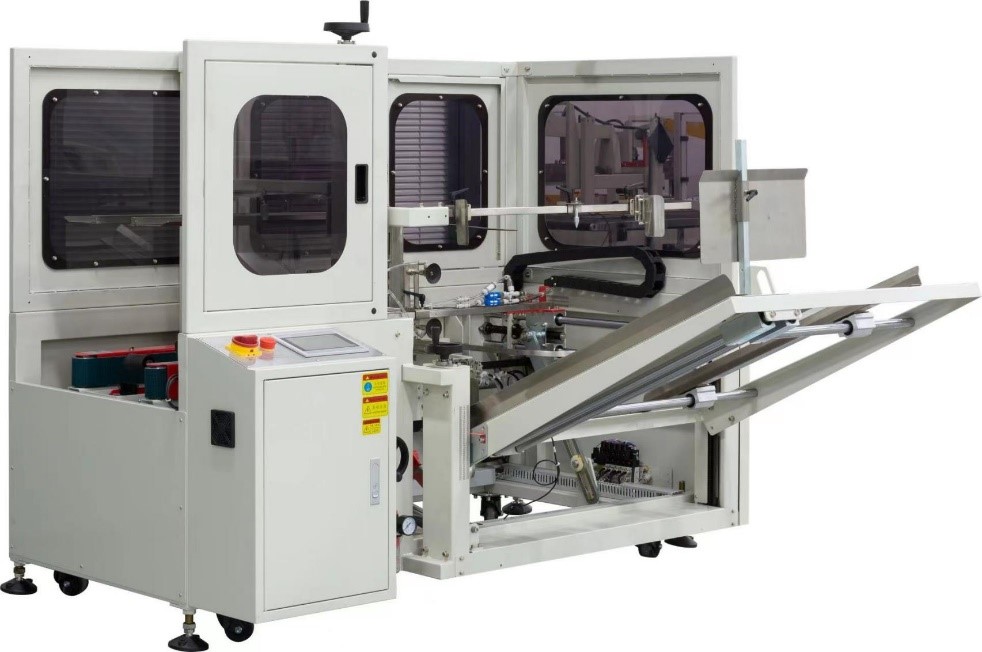

CARTON ERECTING MACHINE

Specifications

• Power: 220V 50Hz 500W
• Air pressure: 6kg/cm2
• Air consumption 200L/min
• Machine dimensions: L2400mm × W1050mm × H1600mm
• Machine weight: 550kg
• Carton specifications: 250-450*150-400*100-400 (requires list of carton specifications)
• Tape width: 4.8-7.2cm
• Forming speed: 12-13 boxes / minute (depending on the size of the carton)
• Unpacking method: vertical forming

Features

• Low electricity and low water consumption, easy to operate, adjust and maintain
• The machine has good self-protection functions such as overload protection and safety gates.
• No tape and no cardboard box alarm function
• You can place 50-100 unformed cartons at a time (depending on the thickness of the carton)

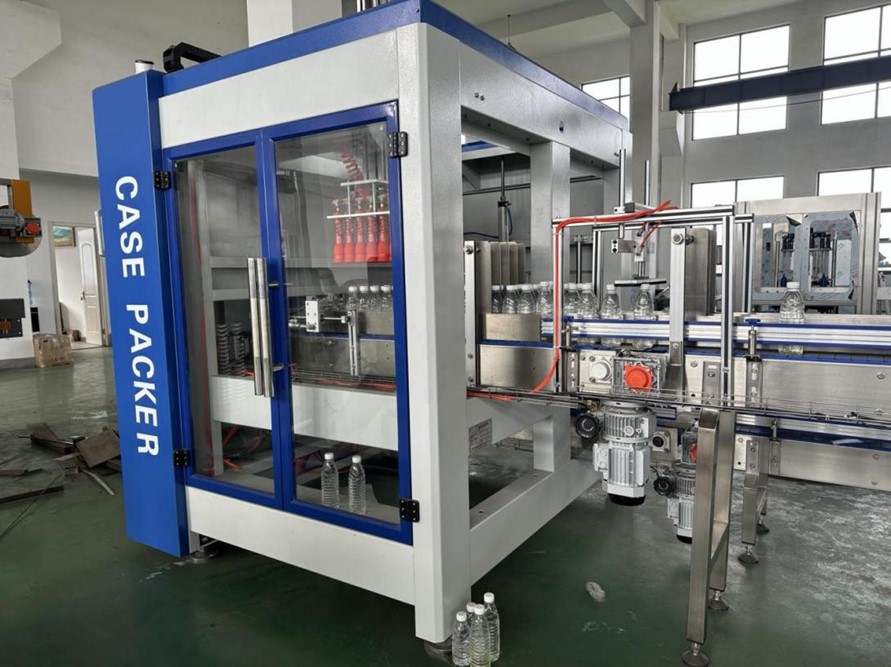

AUTOMATIC CARTON PACKING MACHINE

Parameter
* Equipment production capacity: 10-12 boxes/minute.
* Packaging form: can/box
* Applicable: 4X6
* Number of packaging layers: one layer
* Machine size: 5160 * 3050 * 1600mm
* Power supply: 3phs 380V 50HZ 5.5Kw
* Compressed air: 0.6~0.8Mpa, 350NL/min, air pipe interface: Φ twelve
* Equipment weight: 2500Kg

Description

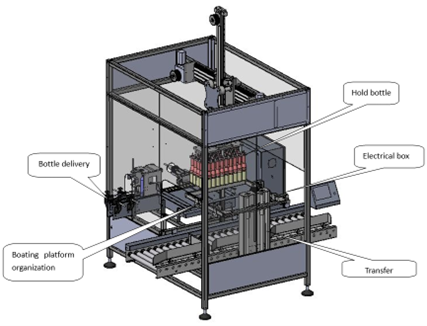

1) The carton packing machine is designed and manufactured according to the clients’ requirements. The container grabber group is designed as a mechanical grabber.

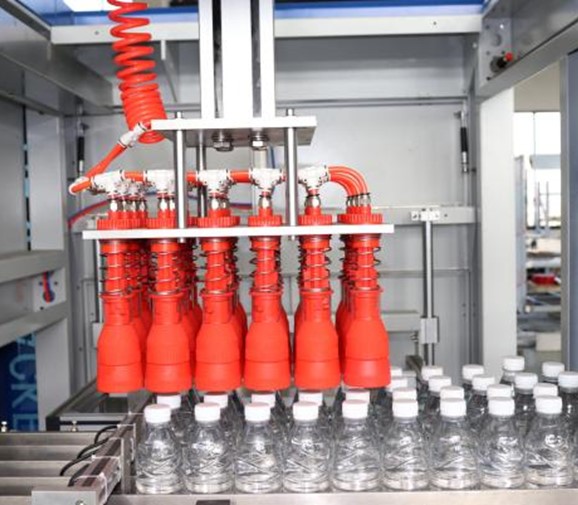

2) The container grabbing group is driven by a symmetrical bidirectional rocker arm, which operates within the designed curved track to perform container grabbing and packing actions. The machine is compact, with precise movements and stable operation.



4) Bottle/box conveyor belt is driven by an asynchronous motor, and according to different conveying needs, it is controlled by a frequency converter and a contactor to achieve automatic bottle supply, bottle discharge, automatic box supply, and box outlet.

5) The equipment is equipped with safety doors and various safety protection detection devices, effectively ensuring the safety of operators.

6) Touch screen operation, built-in various fault codes and fault resolution methods. When a fault occurs, the location of the fault, the cause of the fault, and the solution will be displayed on the human-machine operation interface, improving the work efficiency of maintenance personnel. Built-in various applications

7) The modification interface for variable operation parameters can be modified in a timely manner according to the requirements of the operator, improving the work efficiency of the equipment.

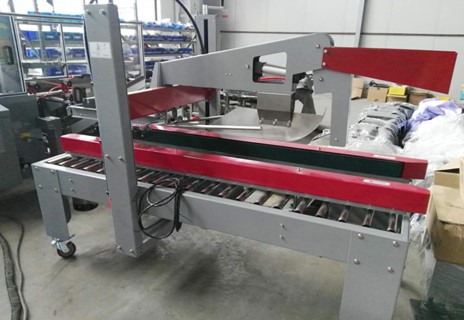

CARTON SEALING MACHINE

Specifications

• Body material: the whole is made of high-quality carbon steel welding, the surface is sprayed
• Power supply: 220V, 50Hz, 400W
• Working pressure: 4kg/cm2
• Dimensions: L1700*W830*H1450mm
• Table height: 600-750mm (adjustable)
• Speed: 20 m / min
• Manual positioning, automatic folding at the top, automatic timely delivery, suitable for automatic production line.
