Description
Rinsing, Filling & Capping Machine / GPF 12-12-5
GPF12-12-5 / 3-in-1 machine for PET bottles used for washing, filling and capping
Main features:
- Compact structure, perfect control system, easy to operate and automated.
- Stainless steel, anti-corrosive, easy to clean.
- High speed filling valve, precise liquid level with no waste.
- Constant torque magnetic capping heads.
- High efficient cap arranging system, perfect cap feeding and protection.
- Bottle rinsing before filling
- For different shape and size bottles, only change part is the star-wheel – quick change over.
- Overload protective for to ensure operator and machine safety.
- Variable speed
- Control system for shortage detection, bottle block automatic stop and production counting etc.
Technical parameter
- Type: GPF12-16-5 (S)
- Working location: Rinser 12, filler 12 capper 5

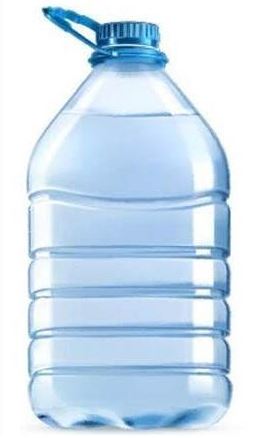

- Production capacity: 2 000BPH (5L)
- Air source pressure: 0.7MPa
- Air consumption: 0.8M3/min
- Rinsing water pressure: 0.2-0.25 MPa
- Rinsing water consumption: 1.8 t/h
- Filling way: Gravity filling
- Host power: 3KW
- The total capacity: 4.5KW
- Voltage rating: 380V
- Dimension: 3 560 x 2 960 x 2 700mm (L*W*H)
- Weight: 5 000Kg
Cap Feed System
Technical parameters
- Fan motor: 380V, 0.55KW
- Vibration motor: 380V, 60W
EQUIPMENT LIST
| S/N | System name | Equipment name | Capacity | QTY |
| 1. | Bottle feeding system | Conveyor chain frame and structure | S/S 304 | |
| 2. | Chain belt | |||
| 3. | Motor and reducer | SEW | ||
| 4. | Cable trough | |||
| 5. | Bottle filling system | GPF 12-12-5 (S) | 1200BPH (5L) | 1 set |
| 6. | Control system | 1 set | ||
| 7. | Rinsing water pump | 1 set | ||
| 8. | Material pump | 1 set | ||
| 9. | Centralized lubricating system | 1 set | ||
| 10. | Back flow water tank | 1 set | ||
| 11. | Bottle change over parts (3L) | 1 set | ||
| 12. | Cap feeding system | Ozone or UV sterilization cabinet | 1 set | |
| 13. | Cap elevator | 12000BPH | 1 set | |
| 14. | Bottle dryer | 1 set | ||
| 15. | Accumulation conveyor – | 300B | 1 sets | |
| 16. | Labeling system
(OPP label) |
Liner type OPP labeling machine
SPP-HG2-12K-XL (from SPP original in Taiwan) |
2000BPH
(5L) |
1 set |
| 17. | Bottle change over parts (3L) | 1 set | ||
| 18. | Laser jet printer | 1 set | ||
| 19. | Final packing system | PE film shrink wrapper with carton tray YCBS6535Z | 10 packs/min | 1 set |
| 20. | Bottle change over parts (3L) | 1 set | ||
| 21. | Full bottle conveyor system | Conveyor chain frame and structure | S/S 304 | |
| 22. | Chain belt | |||
| 23. | Motor and reducer | SEW | ||
| 24. | Cable trough | |||
| 25. | Water accumulate disk | |||
| 26. | Waste water drain pipeline | |||
| 27. | Case conveyor after shrinking wrapper | Case conveyor structure and frame | S/S 304 | |
| 28. | Conveyor roller | |||
| 29. | Conveyor lubrication system | 1 set |
