Description
Specifications
-

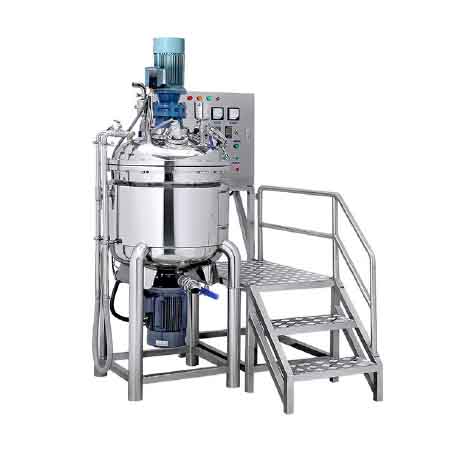

The technical parameter of the main pot (3 layers ):
No. Item Technical parameter
1.1 volume: Design volume :120L;working capacity:100L; Load factor: 0.8
1.2 Heating method: Electric heating, water cooling Rated pressure:
0.2Mpa 1.3 Structure: 3 layers, the blender is one direction and double stable blender, bottom homogenizing;
1.4 The material of the tank:
The material contact part: SUS316L; Thickness:3mm; Imported
Middle: SUS304, thickness: 3mm Heat preservation:
Aluminum silicate Shall layer:2mm
1.5 Cover craft:
Material filer, Vacuum pressure gauge, Vacuum removing valve, Vacuum port, Positive pressure inlet, clean ball, Light for the view, View window, spice inlet,
No dead corners,
1.6 Blending method: One directional blending, and with scraper of Teflon Material: SUS316L
Blender: Blending power :1.5KW,speed :0~63r/min; beide
1.7 Machining: Rotor and stator with wire-electrode cutting and mirror polish
1.8 Sealing: Japan Bearing;
1.9 Polishing : 300EMSH(Sanitation grade),Meet GMP requirement 320U
-
Electric controller system technical parameter:
2.1 Electric
controller
Shell material: SUS304 thickness: 2mm Instrument: temperature gauge, time digital display meter, current voltmeter DELIXI Button control
Electrical component: including all kinds of relays DELIXI
2.2 Temperature
control: Bottom plug-in type, sanitation grade: PT100,50-200 degree M12 threaded
connection type
Homogenizing method: homogenizer; bottom homogenizing, Internal recycle type Material: SUS316L
Homogenizer: Homogenizing power:4KW, Speed :0~3000r/min beide Germany mechanical seal,
