1 TON BULK BAGGING SYSTEM
COMMERCIAL OFFER: – 1 TON BAGGING MACHINE FOR MAGETITITE POWDER
SUB: 1 TON BAGGING MACHINE FOR MAGETITITE POWDER
Sr.
No. |
Description | Qty | Unit
Price |
Total
Price |
|
1 | INCLINE INFEED PRODUCT CONVEYOR (8m) | 1 set | |||
2 | FIBC BIG BAG FILLER – with 6-ton hopper | 1 set | |||
3 | 4m out feed gravity roller conveyor | 1 set | |||
4 | Delivery | ||||
5 | Project management, installation & commissioning | ||||
TOTAL ex vat | |||||
OPTIONALS
6 | Vertical 5-ton blender | 1 set |

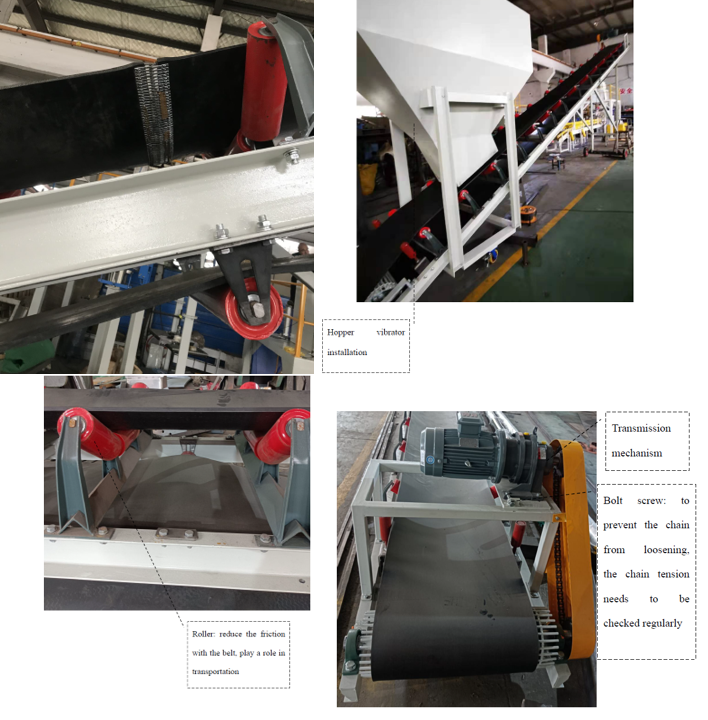

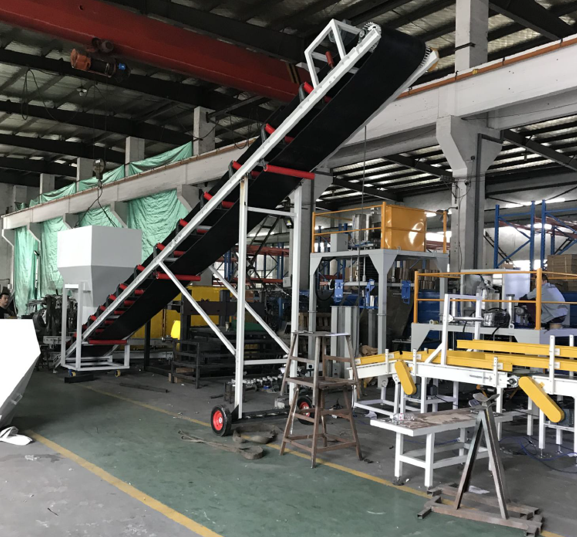

INCLINE INFEED PRODUCT CONVEYOR
Technical Parameters
Belt width: 1000mm
Conveying Length (m): 8
Power (kw): 10
Output: 30t/h

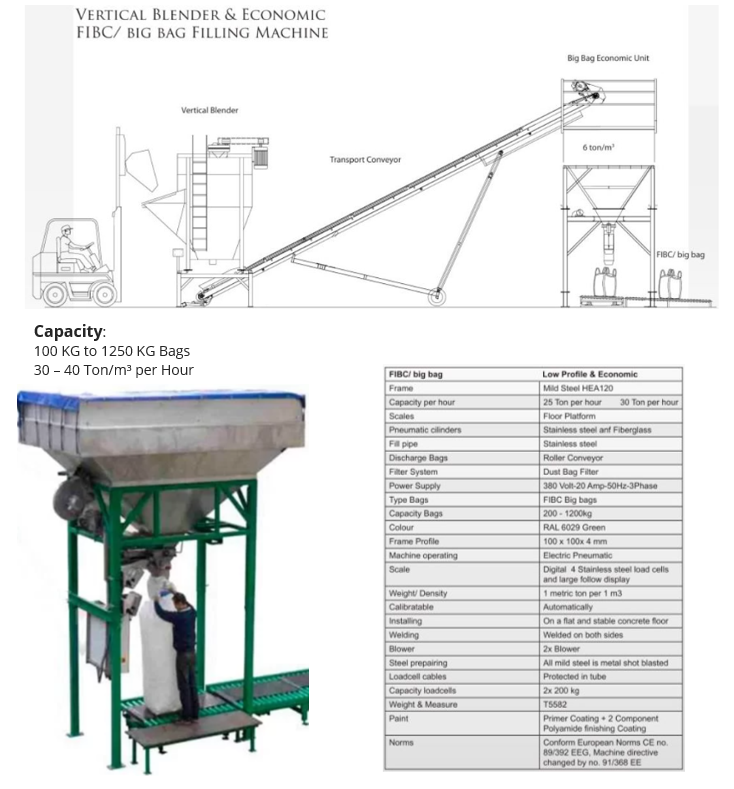

FIBC BIG BAG FILLING MACHINE
Capacity:
100 KG to 1250 KG Bags
30 – 40 Ton/m³ per Hour
The Big Bagger constructed to fill FIBC bags (Flexible Intermediary Bulk Containers). The machine automatically weighs and fills bags of 100 kg to 1250 kg. This machine is suitable for powder and granular materials.
The storage hopper stands on 4 H-profile legs. The materials are put into the storage hopper. A pneumatic valve has been mounted under the storage hopper. This valve has a large and a fine opening. The hopper unloads into a stainless-steel pipe that fits into a big bag. The big bag is sitting on a platform scale on the floor. The height of the filling pipe is adjustable over a length of 400 mm. The big bag must be held up and manually closed around the filling pipe.
By using this system, no dust is released during the filling process. Before the filling process starts, a blower will blow air into the bag. When the bag has it’s full size, the materials flow into the bag. The loadcell platform scale will determine the weight of the product. When the bag is full, a roller conveyor transports the bag. The unit operates with pneumatic cylinders.
The economic big bagger is a fixed machine with a storage hopper above it
The capacities of both systems are 30 ton per hour with big bags of 1000 kg and approximately 50 bags of 500 kg per hour. This product can be adjusted to customer demands
Gravity Jumbo bag Conveyor – Mild steel roller conveyor
Transport the filled bags away from the bagging machine.
- Conveyor length: 4000mm
- Conveyor width: 1200mm
