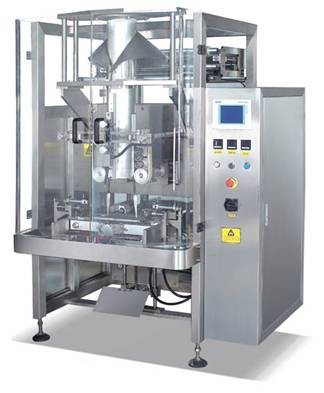

GP-620 & GP730 Packaging Machine
Product description & features
- Double servo motors for film drawing down system.
- Automatic film rectifying deviation function.
- PLC. Pneumatic system for vertical and horizontal sealing.
- Compatible with different internal and external measuring devices.
Application
Suitable for packing granule , powder, strip shape materials, such as puffed foods, peanuts, nuts, popcorn, sugar, salt, seeds, etc.
Technical Specification
| Model | GP- 620 | GP- 730 |
| Capacity | Max 50 bags/ min | Max 45 bags/ min |
| Bag size | Width: 100- 300 mm Length: 100- 390 mm |
Width: 140- 350 mm Length: 100- 450 mm |
| Max film width | Max 620 mm | Max 730 mm |
| Film thickness | 0.04 -0.09 mm | 0.06 -0.12 mm |
| Power source | 4.0KW 220V 50HZ | 4.0KW 220V 50HZ |
| Air consumption | 0.8 Mpa 0.6 m3/ min | 0.8 Mpa 0.8 m3/ min |
| Weight | 800 kg | 900 kg |
