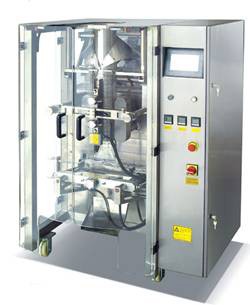

GP-520 & GP520H Packaging Machine
Product description & features
- Film drawing down system controlled by servo motor.
- Automatic film rectifying deviation function.
- Various alarm system to reduce wast.
- It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
Application
Suitable for packing granule , powder, strip shape materials, such as puffed foods, peanuts, nuts, popcorn, sugar, salt, seeds, etc.
Technical Specification
| Model | GP- 520 | GP- 520H |
| Capacity | Max 60 bags/ min | Max 85 bags/ min |
| Bag size | Width: 80- 350 mm Length: 100- 250 mm |
Width: 80- 350 mm Length: 80 – 250 mm |
| Max film width | Max 520 mm | Max 520 mm |
| Film thickness | 0.04- 0.09 mm | 0.06- 0.12 mm |
| Filling range | 150- 2000 ml | 150- 2000 ml |
| Power source | 2.5KW 220V 50HZ | 3.5KW 220V 50HZ |
| Air consumption | 0.8 Mpa 0.4 m3/ min | 0.8 Mpa 0.4 m3/ min |
| Weight | 680 kg | 700 kg |
