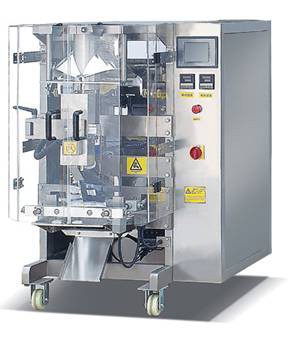

GP-420, GP-420D & GP-420H Packaging Machine
Product description & features
- Low cost high gain, high speed and efficiency.
- PLC control system, large touch screen, convenient to operate;
- Film drawing down system and horizontal sealing controlled by servo motor;
- Minimize the loss with complete automatic warn protection function;
- It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
Application
Suitable to pack granule, powder, solid state materials, such as coffee, potato chips, puffey food, peanut, nuts, popcorns, salt, sugar, tea, seeds, etc.
Technical Specification
| Model | GP- 420 | GP- 420D | GP- 420H |
| Capacity | Max 70 bags/ min | Max 70 bags/ min | Max 99 bags/ min |
| Bag size | Width: 60- 300 mm Length: 60- 200 mm |
Width: 60- 300 mm Length: 60- 200 mm |
Width: 60- 300 mm Length: 80- 200 mm |
| Max film width | Max 420 mm | Max 420 mm | Max 420 mm |
| Film thickness | 0.04- 0.09 mm | 0.04- 0.09 mm | 0.04- 0.09 mm |
| Pulling belt type | One belt | Double belt | Double belt |
| Power source | 2.2 KW 220V 50HZ | 3.5 KW 220V 50HZ | 3.5 KW 220V 50HZ |
| Air consumption | 0.8 Mpa 0.5 m3/ min | 0.8 Mpa 0.5 m3/ min | 0.8 Mpa 0.5 m3/ min |
| Weight | 450 kg | 480 kg | 500 kg |
