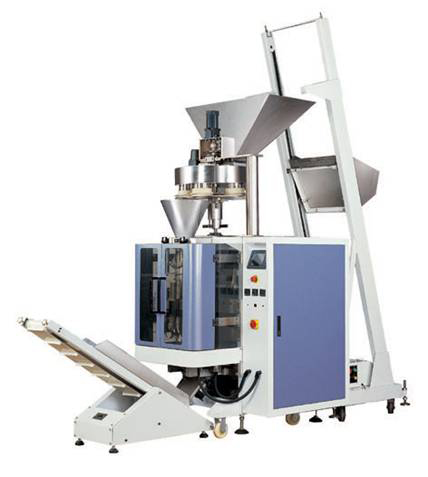

GP-14 Volumetric automatic packaging machine
Product description & features
Combined parts
- GP Series Packing Machine
- Volumetic cups device
- Lifting conveyor
- Finished product conveyor
Options
- Check weigher
- Metal detecter
- Turntable
Features
- The machine completes the whole procedure of feeding, measuring, bagging, date printing, charging (exhausting), finished roduct out-putting automatically.
- The complete sets of machine is convenient and economical.
- According to he character of material, the volumetric cups can be designed as open-close type to avoid damaging materials.
Application
Granule, rice, melon seeds, peanuts, etc.
Technical Specification
| Model | GP- 4321 |
| Bag size | (80 – 300) × (50 – 200) mm (L × W) |
| Max width of roll film | 420 mm |
| Packing speed | 5 – 60 bags/ min |
| Measuring range | 150 – 1200 ml |
| Gas consumption | 0.3 m³/ min |
| Air consumption | 0.65 mpa |
| Power voltage | 220 VAC/ 50 HZ |
| Dimension | 1320 mm × 950 mm × 1360 mm (L × W × H) |
| Weight | 540 Kg |
