Automatic auger filling Machine
Product description & features

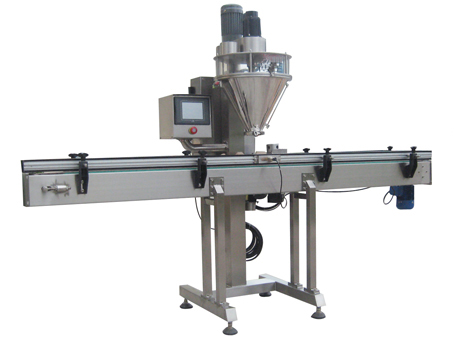

GL-2B
This machine was designed for automatic can feeding, weighing, filling and failed packs detect & delete. It’s suitable for packaging powdery & grainy product, such as: milk powder, monosodium glutamate, solid beverage, white sugar, dextrose, fodder, coffee power, solid medicament, powdery & grainy additive, dyestuff, etc.
- Metering mode: Auger rotation filling (Applicable to canned packing for granule or powder)
- Size of the container: Cylindrical container 50 – 200MM High 50-350MM
- Packing weight: 10-5000g (The screw attachment is to be changed)
- Packaging accuracy: = 100g, = 1g; >100g,= 1%
- Filling rate: 10-50 cans/min Cans supply:
- Power supply : 3P 380V/1P 220V 50~60HZ
- Total power: 2KW
- Total weight: 300kg
- Overall Dimensions: 2500 x 800 x 2200MM
- Hopper Volume: 50L
Product description & features

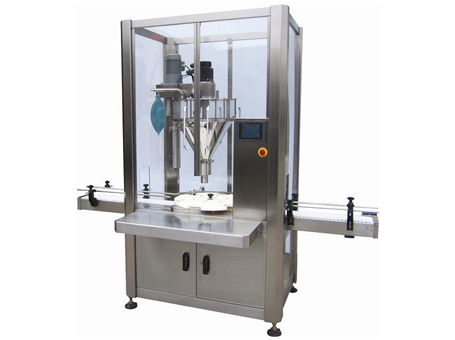

GL-2B2
This newest model of canned packing machine was designed based on our long-range experience accumulation from DCS-2B, in terms of the National GMP Standard. The design, into which was integrated the 21st century’s newest technical conception, is more reasonable, compact and consistent. Can feeding, weighing, filling and failure pack detecting & deleting can be done automatically. The machine is suitable for packaging powdery & grainy product, for instance, milk powder, rice powder, monosodium glutamate, solid beverage, dextrose, etc.
- Metering mode: Auger rotation filling
- Size of the container: Cylindrical container 50 x 160MM High 50-350MM
- Packing weight: 1-6000g (The screw attachment is to be changed)
- Packaging accuracy: =1%
- Filling rate: 20-50 cans/min
- Power supply : 3P 380V/1P 220V
- Total power: 2KW
- Air pressure: 6-8kg/ cm2
- Use tolerance: 0.2m3 /min
- Total weight: 450kg
- Overall Dimensions: 2500 x 1250 x 2300MM
- Hopper volume: 50
Product description & features

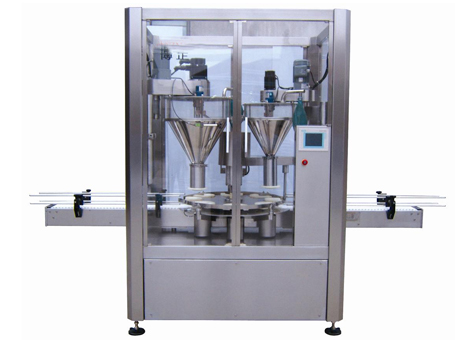

GL-2B3
This machine is equipped with two sets of dosing unit for different size: pre-dosing and complement dosing. Three sets of servo driver and Siemens color touch screen ensure the entirely improvement in precision and speed. Be applicable for packing powdery, super fine powdery products.
- Metering Mode: Dual auger filling & weighing
- Size of the container: Cylindrical container 50 x 180MM High 50-350MM
- Packing weight: 10/5000G (The screw attachment is to be changed)
- Weighing range: 1/6000G (Resolution is 01g)
- Filling Accuracy: = 500g,with an error=1.5g
500~1000g,with an error=2.5%g
>1000g,with an error=4g - Filling Rate: 25 – 55cans/min
- Power supply:3P/380V(1P/220V according your requirement) 50/60Hz
- Total power: 3KW.
- Air pressure: 6-8kg/cm2
- Use tolerance: 0.2m3/min
- Total weight: 700KG
